Parametric Door Family Revit (LOD 400)

Parametric Revit – Frameless and Framed Doors with Concealed Hinges (LOD 400)

This collection includes parametric framed doors with concealed hinges and frameless doors with concealed hinges, all designed at a Level of Detail (LOD 400).

The goal of this set is to provide precise control over door components, deliver** professional presentations in Phase 2 of design**, and produce higher-quality, more realistic renderings in projects.

For ease of use, a lighter version of the doors with LOD 200 is also included in the file.

________________________________________

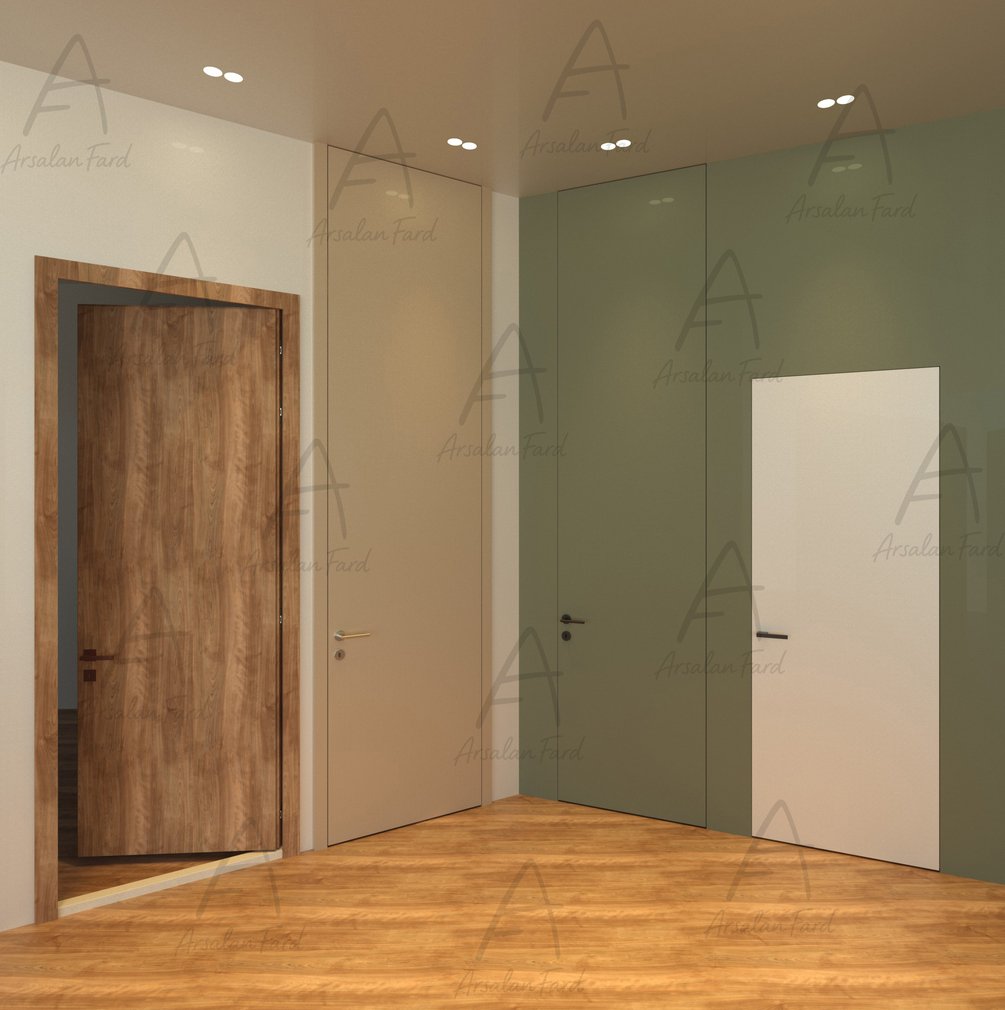

Types of Models

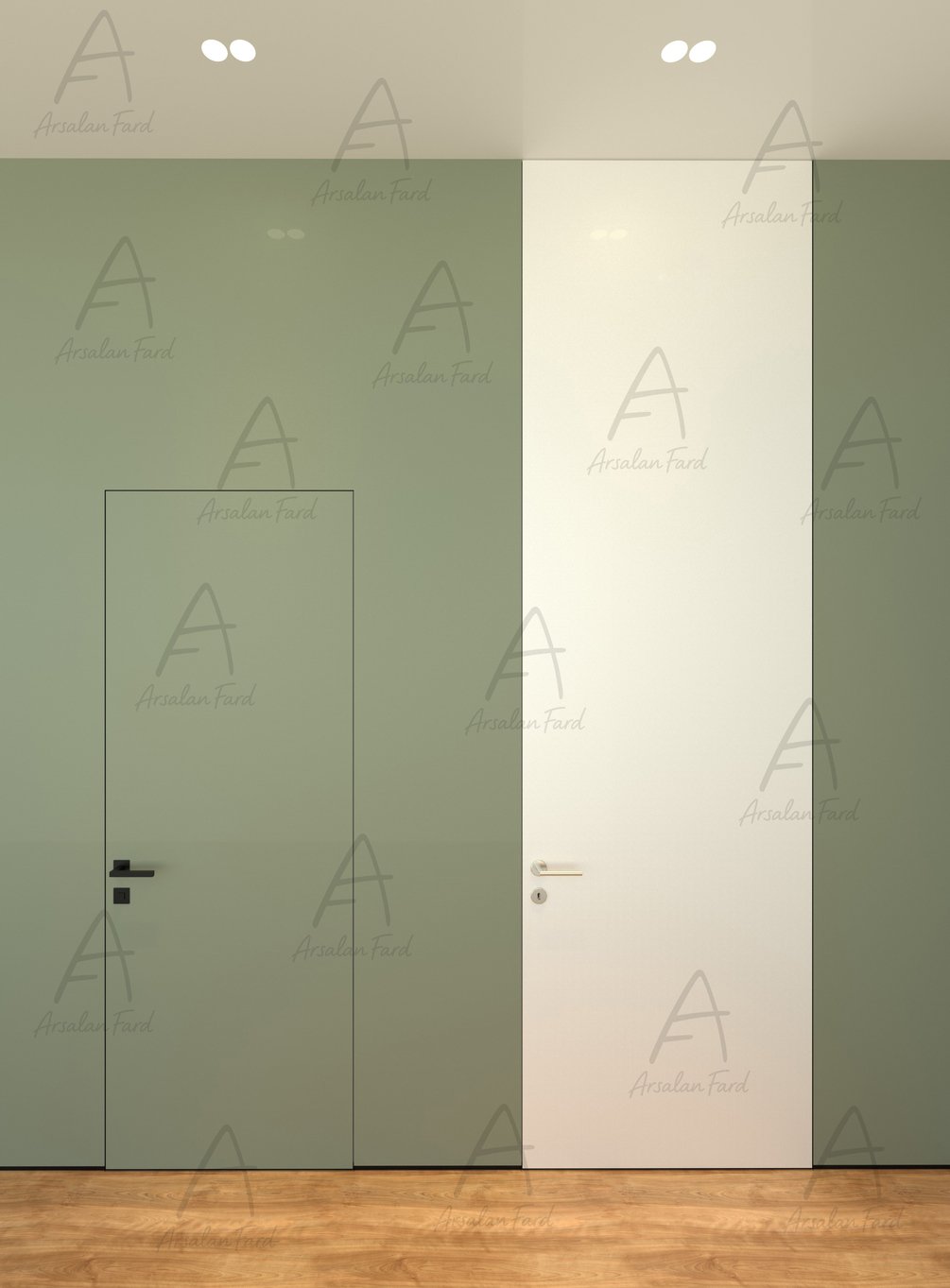

Frameless doors in two configurations:

1. Three-sided frameless

2. Two-sided frameless

Framed doors in two configurations:

1. Three-sided framed

2. Two-sided framed

________________________________________

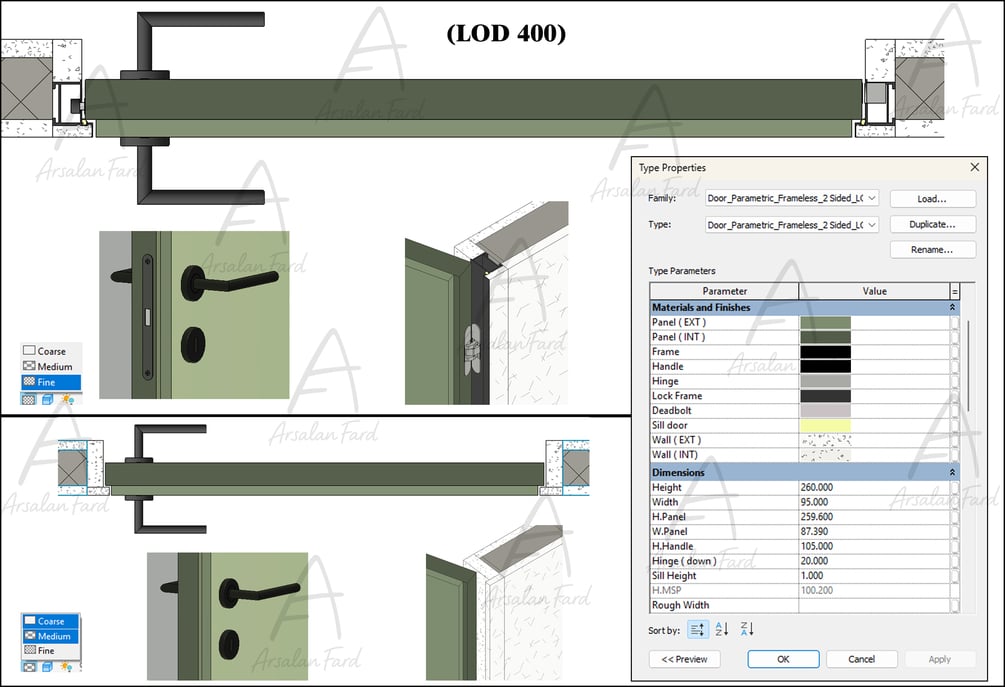

Dimensions

Full control over the following parameters:

• Door opening height and width (Height / Width)

• Panel height and width (H. Panel / W. Panel)

• Door opening angle (Opening Angle)

• Handle height from floor (H. Handle)

• Panel start height from floor (Sill Height)

• Hinge position from floor (Hinge Down)

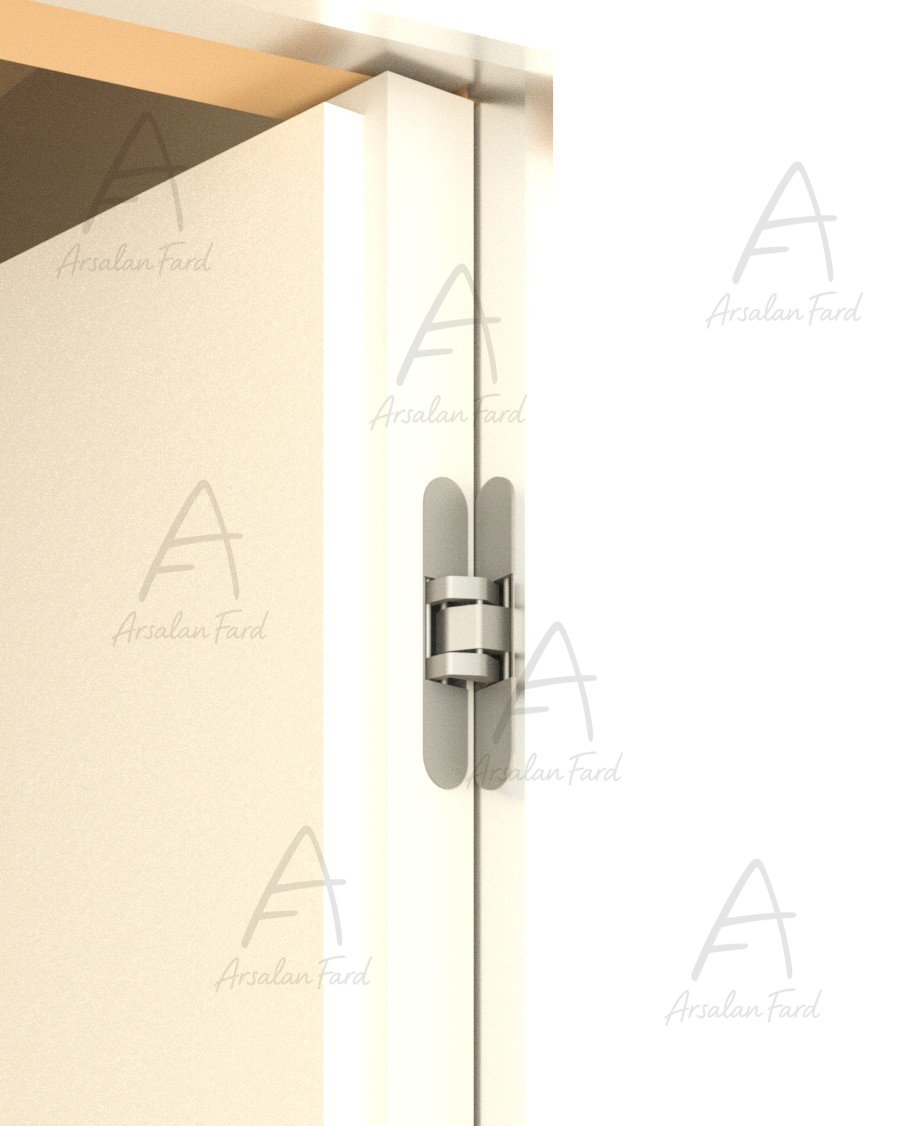

When the door dimensions change, the number and position of hinges automatically adjust.

________________________________________

Materials and Finishes

You can define materials for all door components:

• Interior and exterior panels

• Handle

• Frame

• Walls connected to the frame (interior and exterior)

• Hinges

• Lock frame and Deadbolt

________________________________________

Visibility

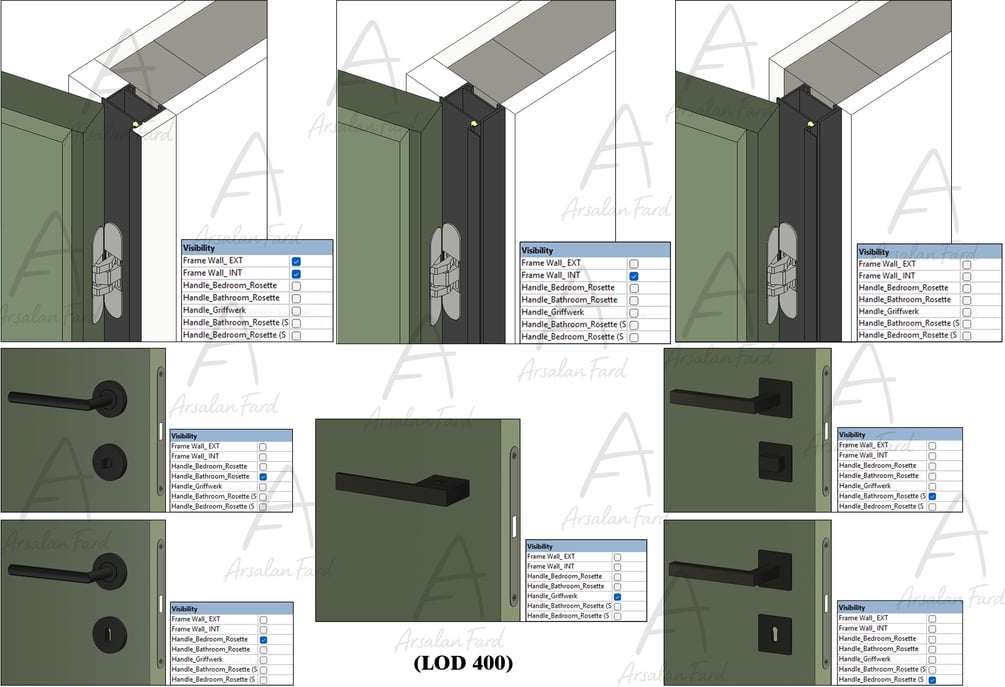

• Ability to choose from** five handle types** (Bedroom and Bathroom)

• Option to** show or hide** one or both of the walls adjacent to the frame (filler walls and main wall)

• In Fine view mode, all door and component details are shown

• In** Coarse/Medium** view modes, the model is simplified for faster performance

________________________________________

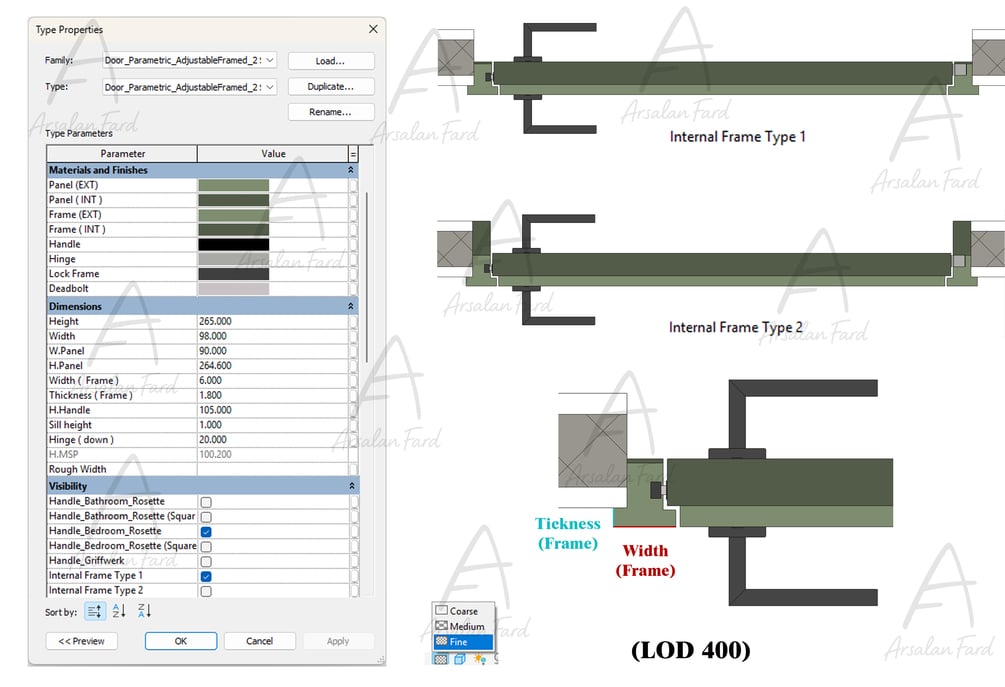

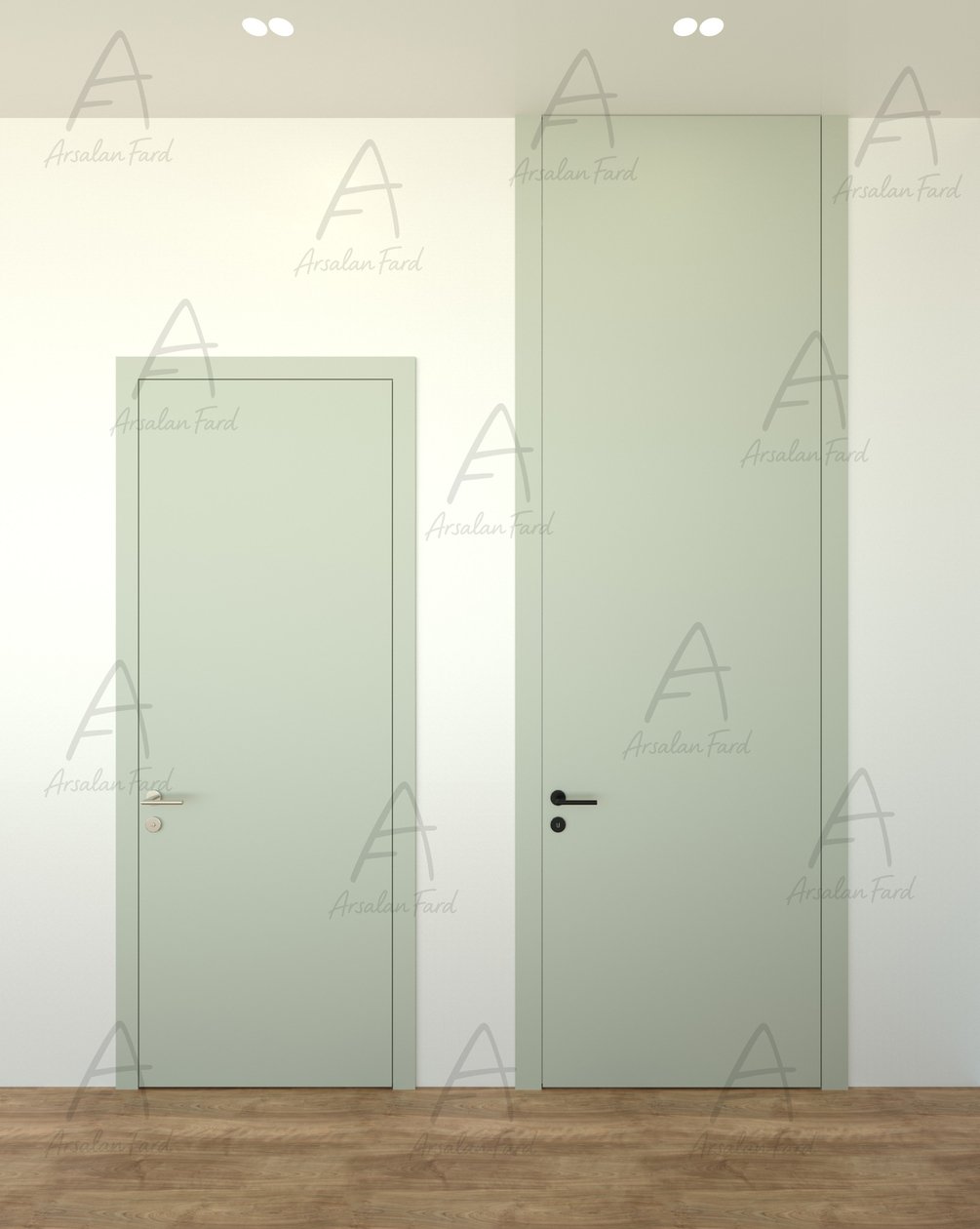

Additional Features for Framed Doors

In addition to the above, framed doors include control over:

• Frame width (Width Frame)

• Frame thickness (Thickness Frame)

In the** Visibility** settings, you can choose between two types of interior frames:

• Frame flush with the panel

• Frame flush with the interior wall

“Revit 2025 version. Older versions available upon request.”
